質はすべてである
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Linsheng Auto II MaxM |
| モデル番号: | LS-PAT-P2 |
| 最小注文数量: | 1ピース |
| 価格: | USD49/PC~USD299/PC |
| パッケージの詳細: | カートン |
| 受渡し時間: | 2週間 |
| 支払条件: | L/C、T/T、PayPal |
| 供給の能力: | 1000pcs/月 |
| 作業電圧: | 12/24/36/48V DC | 負荷力: | max.350kg（プッシュ）; 200kg（プル） |
|---|---|---|---|
| マックス。スピード: | 2.4mm/s（全負荷）; 56mm/s（自由負荷） | 脳卒中: | 20mm -1000mm |
| 信号出力: | /ポット /ホールセンサーなし | IP評価: | IP66 |
| 色: | 銀 | 制限スイッチ: | 組み込み |
| ケーブルの長さ: | 1000mm | ||
| ハイライト: | long stroke DC actuator,IP66 outdoor linear actuator,350kg industrial electric actuator |
||

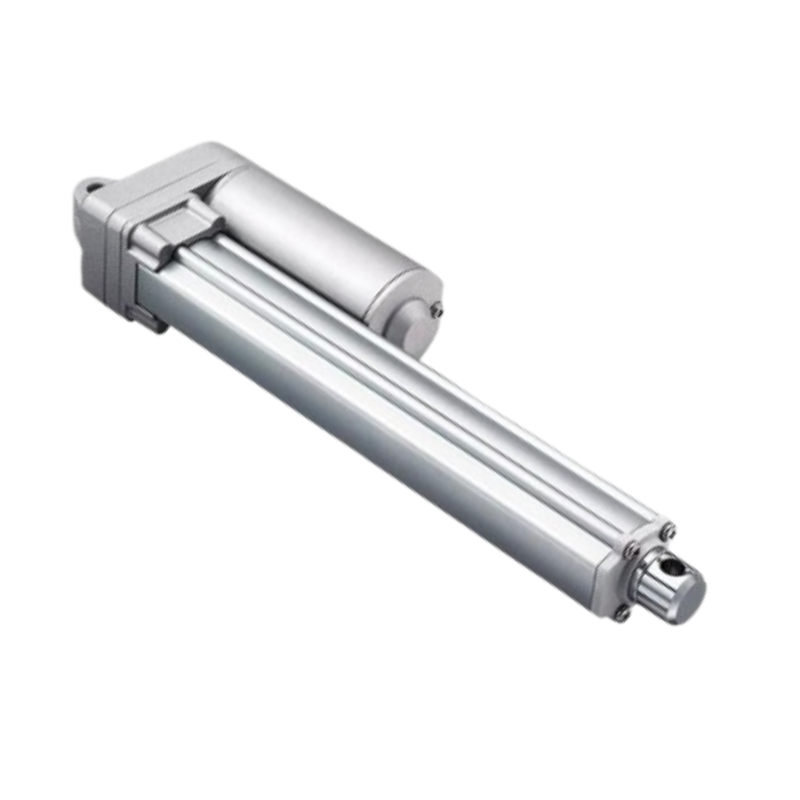

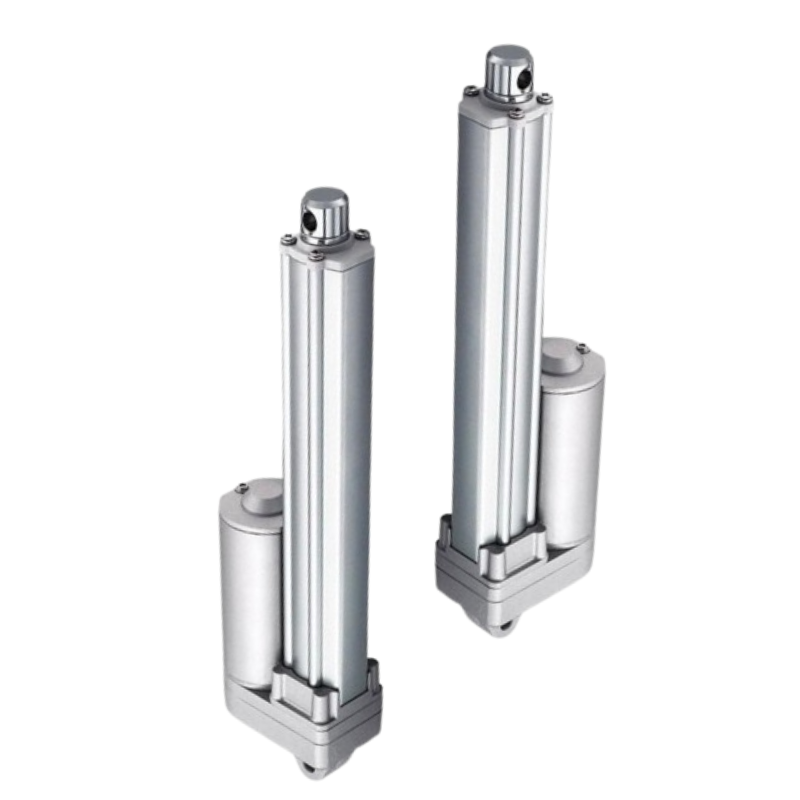

Long Stroke Customizable DC Actuator IP66 Outdoor 350kg Light Industrial Use
Compact high-thrust linear actuator LS-PAT-P2 with customizable long stroke from 20mm to 1000mm and IP66 protection. Perfect for outdoor automation projects such as sweepers and cleaning machines.
Specifications:
| Model | LS-PAT-P2 |
| Voltage | DC12V/24V/36V/48V |
| Max. load force | 3500N |
| Stroke (Customized) | 20mm - 1000mm |
| Signal output (Optional) | POT / HALL sensors |
| IP rating | IP54 / IP66 |
| Color | Silver |
Features:
* Long stroke customizable options
* Compact size with high thrust force
* IP66 protection for outdoor project
Applications:
Automate cleaning machine such as sweepers

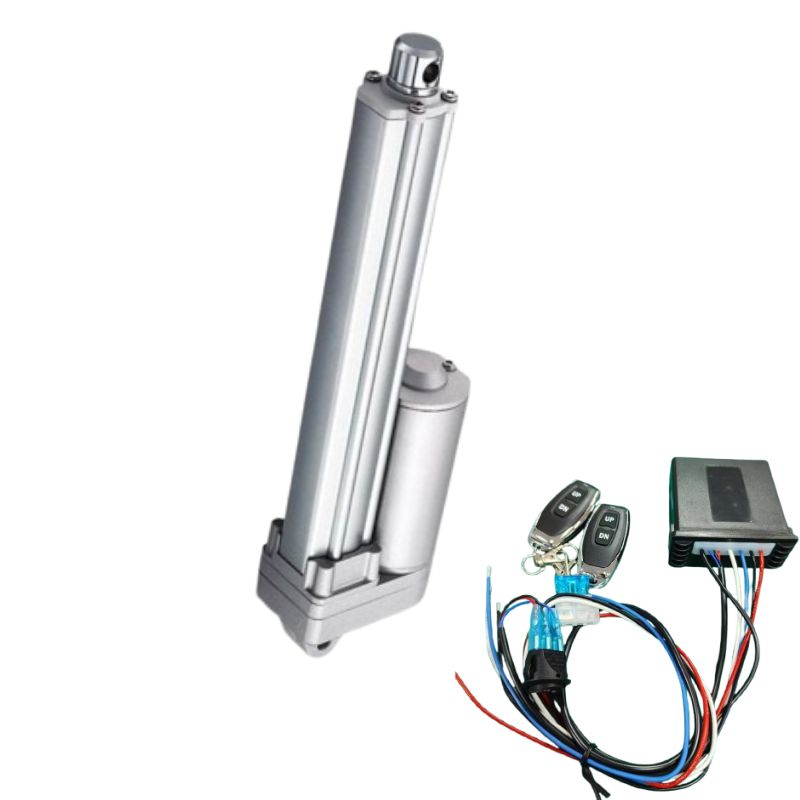

We offer a variety of control systems compatible with this light-industrial actuator for automation applications. Welcome to your inquiry for more detaiils!
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
