| Place of Origin: | CHINA |
|---|---|
| ブランド名: | Linsheng Auto II MaxM |
| モデル番号: | LS-JLC-01 |
| 最小注文数量: | 1ピース |
| 価格: | 159-299 USD/PCS |
| パッケージの詳細: | カートン |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, PayPal |
| 供給の能力: | 1か月あたり1000個 |
| 電圧: | 12V / 24VDC | カラムチューブNo.: | 3段階 |
|---|---|---|---|
| リモート周波数: | 433.92MHZ | 遠隔距離: | 30メートル |
| リモートオプション: | 瞬間的および非瞬間的 | 負荷力: | 2000n |
| 制限スイッチ: | 組み込み | 作業温度: | -15℃～+45℃ |
| コントローラー機能: | 同期 |

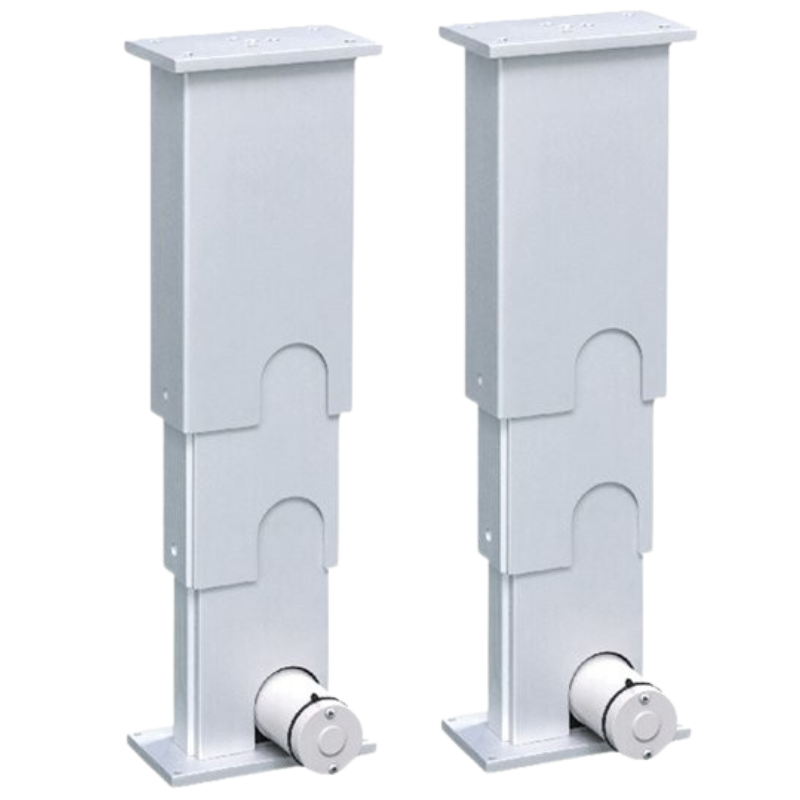

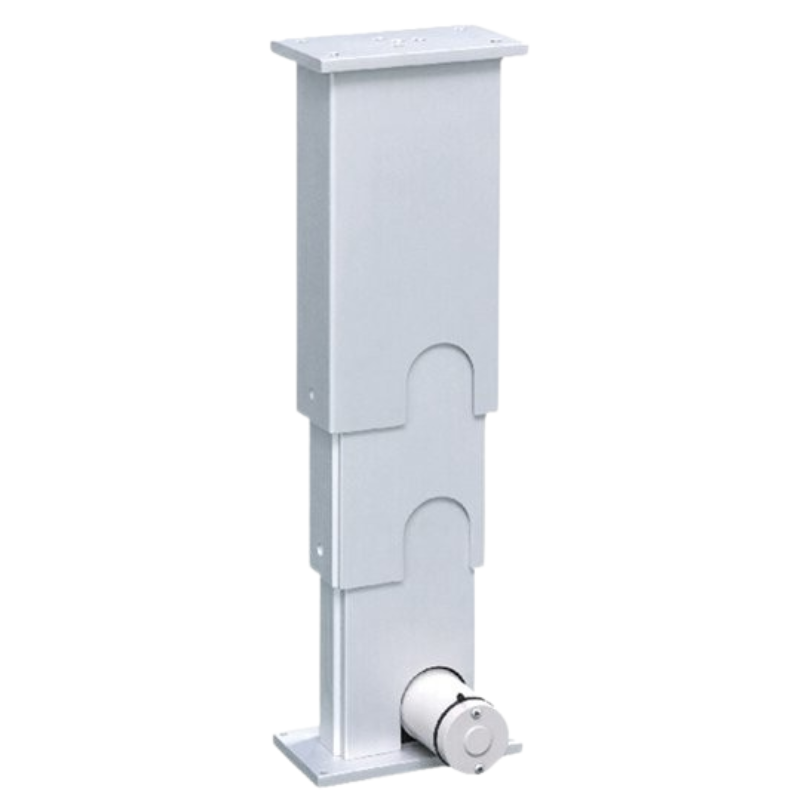

The electric 3-stage lifting column actuator provides a reliable and efficient lifting solution for applications that require smooth and precise height adjustment. Designed with a three-stage telescopic structure, it offers a wide speed range of 8mm/s to 25mm/s, ensuring both stability and flexibility in operation.
When paired with the Linsheng synchronizatioin control system, the lifting column enables coordinated and synchronized motion, making it ideal for use in platforms, adjustable desks, workstations, workbenches and tables. Its compact design, high performance, and customizable options make it a perfect choice for modern automation and ergonomic systems.
Model no. : LS-JLC-01
Input Voltage: 12V / 24V DC
Load Capacity: 2000 N
Speed: 8–30 mm/s
Stroke: Customizable according to requirements
Duty Cycle: 10% (2 min on / 18 min off)
Limit Switches: Built-in internal limit switches
Operating Temperature: –15 °C to +45 °C
Color Options: Black or Gray
Protection Class: IP20

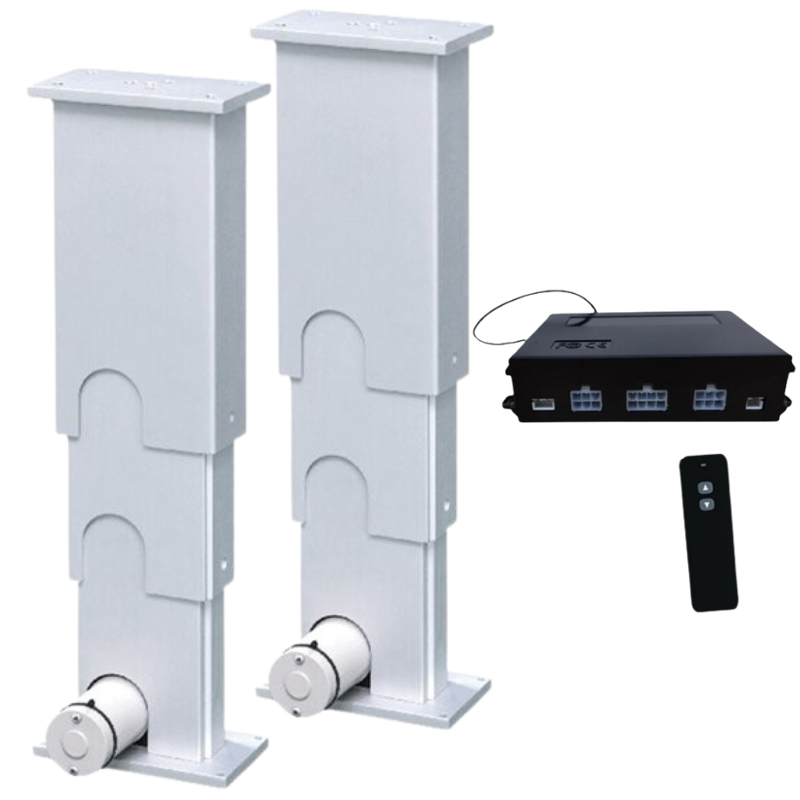

| Product Name | 2 Hall Effect Lifting Column synchornization Control system |
| Protection | Overcurrent safety protection |
| Function | Control one actuator / lifting column motion (UP/DOWN/STOP) |
| Operation | Wired switch and Wireless remote control |
| Max. current | 25A |
| Remote range & Frequency | 30 meters . 433.92MHz |
| Working Voltage | DC 12V - 28V |
| Remote Control modes | Momentary and latching |
| Features | Synchronize two Hall sensor lifting columns in any situation |
| Model | LS-RSK-H1 |
One of the key attributes of this product is its Custom Electric Column feature, making it ideal for industrial height adjustable lifting column applications. The lifting column is perfect for Industrial Automation setups where precise and controlled vertical movement is required.
Height-adjustable workbenches – Allow operators to raise or lower the work surface for ergonomic comfort and efficiency.
Machine platforms or assembly tables – Used to lift or align heavy components during production or inspection.
Testing and measuring equipment – Provides precise vertical movement for instruments that require stable positioning.
Control cabinets or operator panels – Enables adjustable height for easy access and improved usability.
Our Lifting Column Actuator product comes with comprehensive product technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with installation guidance, troubleshooting, and any technical queries that may arise.
Product Packaging for the Lifting Column Actuator:
The lifting column actuator is carefully packaged in a sturdy cardboard box to ensure safe delivery.
Product Shipping for the Lifting Column Actuator:
Once your order is processed, the lifting column actuator will be shipped using a reliable courier service to your specified address.
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
